Wiring Panel para Orbit 360

Descripción

The Wiring Panel for the Orbit 360 data logger is designed to make it easier to perform field maintenance and prevent mis-wiring, while significantly increasing the protection of the data logger against electrostatic discharges.

Case Study 2

Norway

Case Study 6

Germany

Case Study 7

Egypt

¿CÓMO PODEMOS AYUDARTE?

Dinos que necesitas rellenando el siguiente formulario y nos pondremos en contacto.



Categoría: Etiquetas: ,

The Wiring Panel for the Orbit 360 data logger is designed to make it easier to perform field maintenance and prevent mis-wiring, while significantly increasing the protection of the data logger against electrostatic discharges.

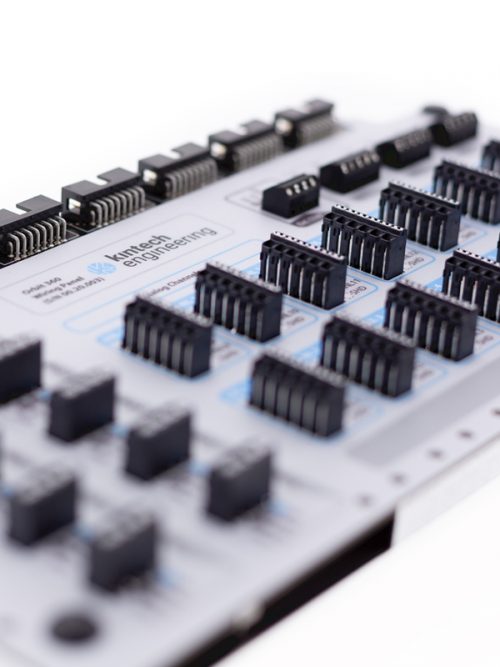

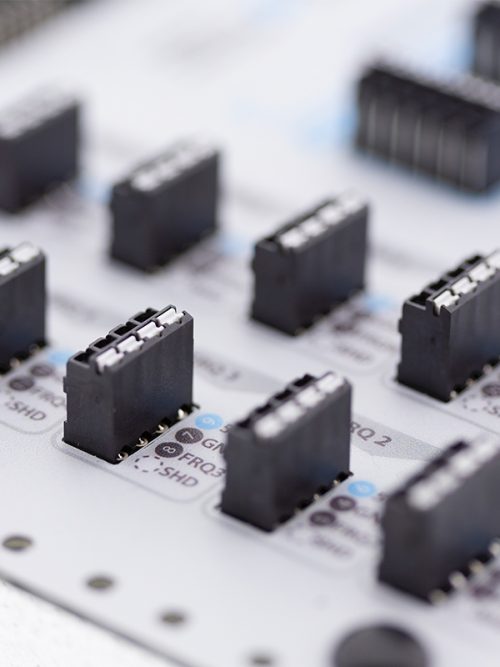

With its dedicated spring cage terminals for all the individual sensors, the Wiring Panel offers a secure vibration resistant and long-term stability to your sensor connections and makes it much easier for the operator to insert and remove cables during field maintenance.

Benefits

  • Highly increased protection against electrostatic discharges.
  • Easier handling during field maintenance.
  • Individual and replaceable surge protections.
  • Helps to decrease cable cluttering.
  • Clear labeling to prevent mis-wiring.
  • Compatible with both Orbit 360 Premium and Orbit 360 Basic Plus.

In the event of an electrostatic discharge the Wiring Panel will discharge the lightning current to earth and protect the data logger from damage.

Why is this product interesting for me as a developer?

Wind project performance is defined in terms of the potential energy production on a specific site as well as the uncertainty of the energy production estimate. The information gathered from a measurement campaign will guide your decision making throughout all the project´s development stages, which is why we are constantly taking new measures to help our customers achieve a data availability that is as high as possible during the complete duration of the measurement campaign. The Wiring Panel for the Orbit 360 is yet another product that will ensure this data availability our customers need.

For more information about the Wiring Panel for the Orbit 360 please contact us on support@kintech-engineering.com or go to our online FAQ section.

Applications

Wind resource assessment, solar resource assessment, solar monitoring, meteorology, environmental monitoring

Data logger compatibility

Orbit 360

Sensor compatibility

Data logger model dependent (Orbit 360 Premium or Orbit 360 Basis Plus)

Channel capacity

All Orbit 360 channels (25) + Modbus RTU + RS-485 buses (3) + Ext. COM

Assembly

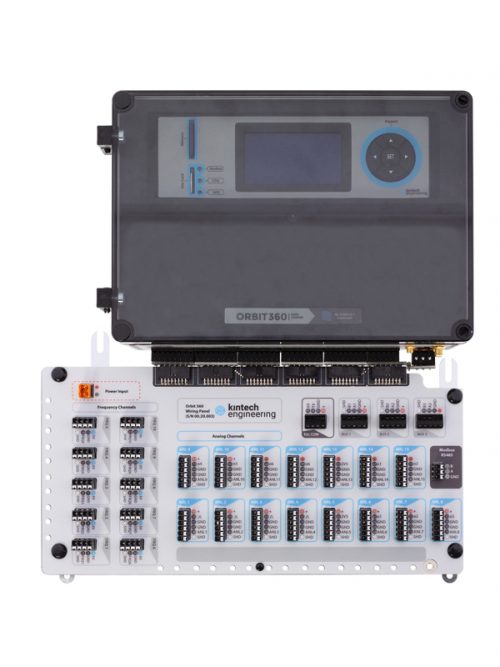

Inserted directly into the Orbit 360 terminal plugs and attached to the backplate of the enclosure with 4-star shaped screws

Surge arrester technology

3-stage protective circuit: Impedance-coordinated hermetically encapsulated gas filled spark-gaps + MOV + TVS diode

Number of replaceable surge protection boards

30

Wiring terminals

Number of protected frequency channels

10 channels, two wires per channel: signal and output supply. Push-in technology. Dedicated terminals for ground and shield on all channels.

Number of protected analog channels

15 channels, three protected wires per channel: signal and two supply outputs. Push-in technology. Dedicated terminals for ground (x2) and shield on all channels. Extra built-in output supply terminals on channels 11 to 15.

Number of protected RS-485 buses

3 buses (three wires: A, B and output supply). Screw connection with tension sleeve. Extra built-in output supply terminal on BUS 3.

Power supply terminal type

2-pole plug-in connector. Clamping yoke connection.

Parameters

Nominal operating voltage

5…30V DC

Maximum input voltage

36V

Operational data

Operating temperature range

-40 °C to 85 °C

Operating humidity range

0…100 % RH non-condensing

Physical dimensions

Weight

0.862 kg

Height

14.6 cm

Width

30.7 cm

Depth

2.8 cm

To ensure that most of our customers can benefit from the features of the Wiring Panel, three versions of the Wiring Panel are available.

Wiring Panel PremiumWiring Panel BasicWiring Panel
Secure spring cage terminals
Easier handling during field maintenance
Decreased cable cluttering
Replace or add individual surge protectors
Clear labeling to prevent mis-wiring
Individual surge protections included30*13*0*
CompatibilityAll Orbit 360 modelsAll Orbit 360 modelsAll Orbit 360 models



*Individual surge protections for any of the three versions can be ordered separately.
