Geovane 测风塔版

描述

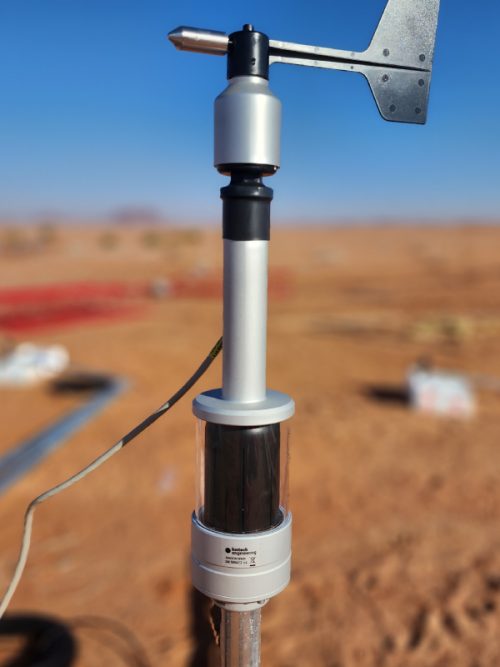

A patented invention that finally solves the inherent uncertainties in wind direction measurements. By adding a Geovane to your wind measurement campaign configuration you will get the most accurate wind direction data available on the market today. Guaranteed!

Case Study 10

South Korea

Case Study 7

Egypt

产品查询

您对本产品有任何疑问吗? 填写表格,我们将尽快与您联系

A patented invention that finally solves the inherent uncertainties in wind direction measurements. Given the impact incorrect wind direction measurements have, the updated IEC-61400.12.1 (2017) now requires complete assessment of wind direction measurement uncertainties. The Geovane enables you to do exactly that!

Being equipped with high-resolution optoelectronic sensors, composed of 1024 photo sensing pixels, the Geovane uses the Sun to measure the True North offset of sensor coupled to it, resulting in more accurate direction measurements than ever possible before.

The True North wind vane offset is obtained by comparing the theoretical solar azimuth angle calculated by the Geovane’s embedded processing unit with the observed azimuth value read by its built-in photo sensing pixels. The Geovane offers three type of outputs: frequency, analog voltage and digital over a RS-485 serial interface. By adding a Geovane to your wind measurement campaign configuration you will get the most accurate wind direction data available on the market today. Guaranteed!

M.O.E as an accredited IEC/ISO 17025 test lab was requested by Kintech Engineering to carry out a thorough validation with respect to the Geovane accuracy. The tests prove that the Geovane allows to consistently determine the true orientation of a wind vane with an uncertainty less than 1º.

Click here to see our patent titled “Device for Determining the Orientation Error of a Wind Sensor”

Click here to download the test summary by M.O.E

We have prepared a website just for the Geovane. For more details go to www.geovane360.com

CHARACTERISTIC DESCRIPTION
Operating voltage6… 36V
Measurement rate1s, 10s, 30s, 60s
Consumption5mA at 12V and 10s (1.5mA at night)
Measurement range0… 360°
ReferenceGeographic North (True North)
Field of View (FOV)360° (azimuth) and 62° (elevation)
Accuracy (3σ)0.5°
Resolution<0.06°
Digital outputRS-485 (9600, 8N1)
Frequency output10… 130Hz push-pull with 220Ω series resistance
Analog output12-bit resolution 0.5… 4.5V with 220Ω series resistance
Temperature range-25… 85°C
Weight0.870Kg
Dimensions180 x Ø80mm (w/o adaptor)
MountingOnto mast tube Ø34mm
