Thies First Class (Potentiometer)

ThiesClimaFirstClassWindVane

Description

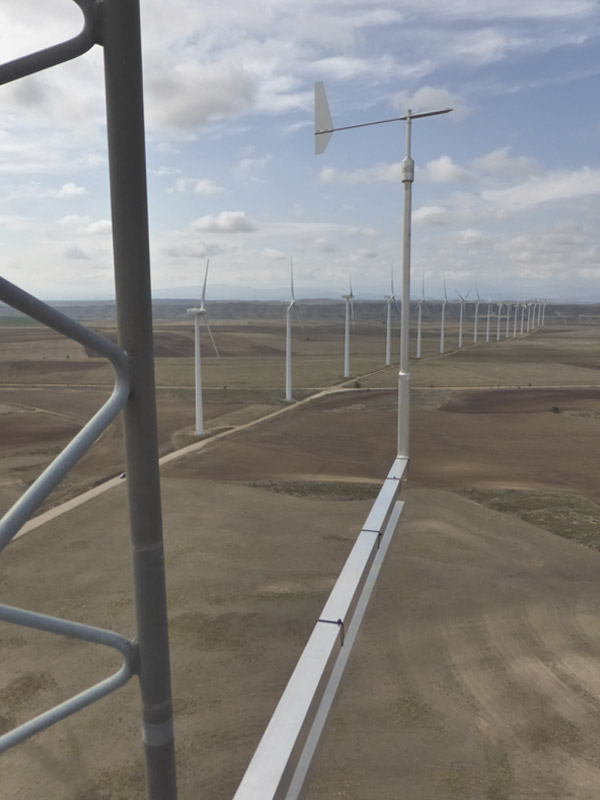

The Thies First Class wind vane is one of the most common wind vanes used in wind resource assessment to determine the wind direction.

Case Study 2

Norway

Case Study 6

Germany

Case Study 7

Egypt

HOW CAN WE HELP?

Tell us what you need by filling in the form below and we will get back to you.



The Thies First Class wind vane is one of the most common wind vanes used in wind resource assessment to determine the wind direction.

Features:

  • High level of measuring accuracy and resolution
  • High damping ratio at a small delay distance
  • Low starting threshold
  • Magnetic coupling, which is free of hysteresis and wear, situated between the axis of vane and potentiometer

In order to prevent the ball bearing and the external rotation parts from freezing, the wind vane can be ordered with an optional electronically regulated heating system for wintertime use.

Add a Geovane to your wind vane

Given the impact incorrect wind direction measurements have, the recently updated IEC61400.12.1 (2017) now requires complete assessment of wind direction measurement uncertainties. By adding a Geovane to your wind measurement campaign (in combination with either a Thies First Class or a Thies Compact wind vane) you will get the most accurate wind direction data available on the market.

DATAUNITS
Measuring range:0 … 360 °
Measuring accuracy:0.25% (1°)
Survival speed:85 m/s up to 0.5 h (without damages)
Permissible ambient conditions for operation:-50 to +80°C all occurring situations of rel. humidity incl. dew moistening
< 0.2 m/s at 90° amplitude (acc. to VDI 3786 Part 2)
4.3151.x0.212:2 KΩ Potentiometer
4.3151.x0.210:10 KΩ Potentiometer
Linearity:0.25% (1°)
Starting threshold:< 0.5 m/s at 10° amplitude (acc. to ASTM D 5366-96)
Delay distance:< 1.8 m (acc. to ASTM D 536696)
Damping ratio:D > 0.3 (acc. to ASTM D 536696)
